Helix

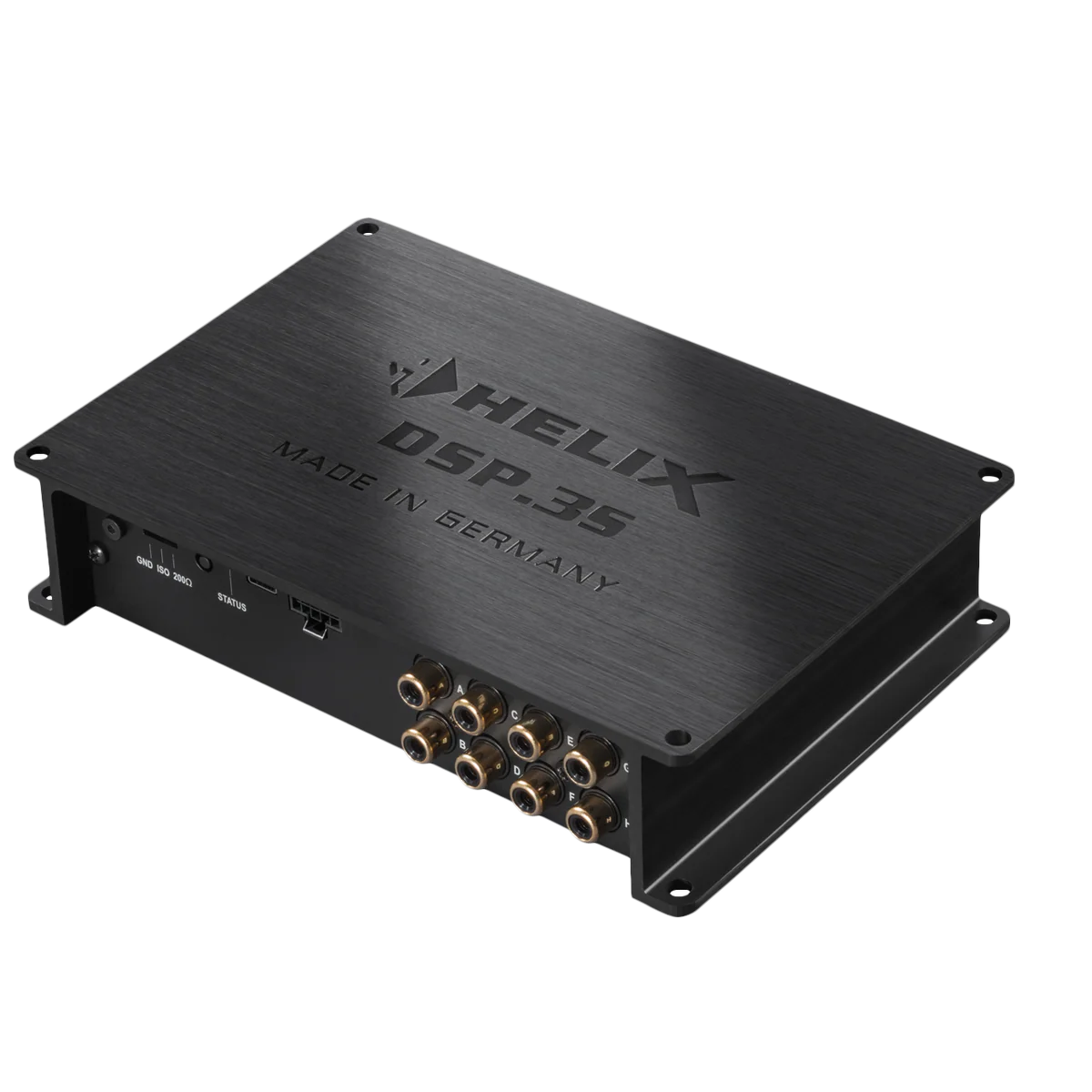

HELIX DSP.3S

HELIX DSP.3S

$1,195.00 AUD
$1,195.00 AUD
Sale Sold out

The HELIX DSP.3S is the new definition of the standard for digital signal processors. Continuously refined, this 8-channel DSP presents numerous improvements in detail. Besides the obligatory optical digital input, an additional coaxial digital input now provides the best conditions for connecting high-resolution signal sources with a sampling frequency of up to 192 kHz.

  • Extremely powerful 64 Bit “fixed point” Audio DSP with 1.2 billion MAC operations per second
  • High Resolution audio bandwidth up to more than 40 kHz for unrivalled sound quality
  • A/D and D/A signal converters from BurrBrown
  • Advanced CoProcessor (ACO) for extended feature set
    • Input Signal Analyzer (ISA) and InputEQ
    • DSP Sound Effects (SFX) such as the “Augmented Bass Processing” which dynamically optimizes the bass response of the subwoofer, the “StageXpander” that significantly widens the stereo perspective, the “RealCenter” function, which allows a perfectly focussed sound staging for both driver and co-driver and much more
    • 10 internal memory locations for sound setups
  • Smart highlevel input with ADEP.3 circuit and Auto Turn-On function
  • Optical (max. 96 kHz) and coaxial (max. 192 kHz) digital input in SPDIF format
  • Compact, future-proof Smart Control Port (SCP)
  • HEC slot for system expansions for additional input / output modules like Bluetooth® Audio Streaming, High Resolution Audio Streaming via USB etc.
  • Freely definable signal routing with separate matrices for line, SPDIF and HEC/AUX
  • Optimal signal path and power supply for further improved sound quality
  • “Ground lift” switch to avoid ground loops
  • Compact dimensions for easy integration into the vehicle
  • Easiest configuration via the intuitive DSP PC-Tool V4 software

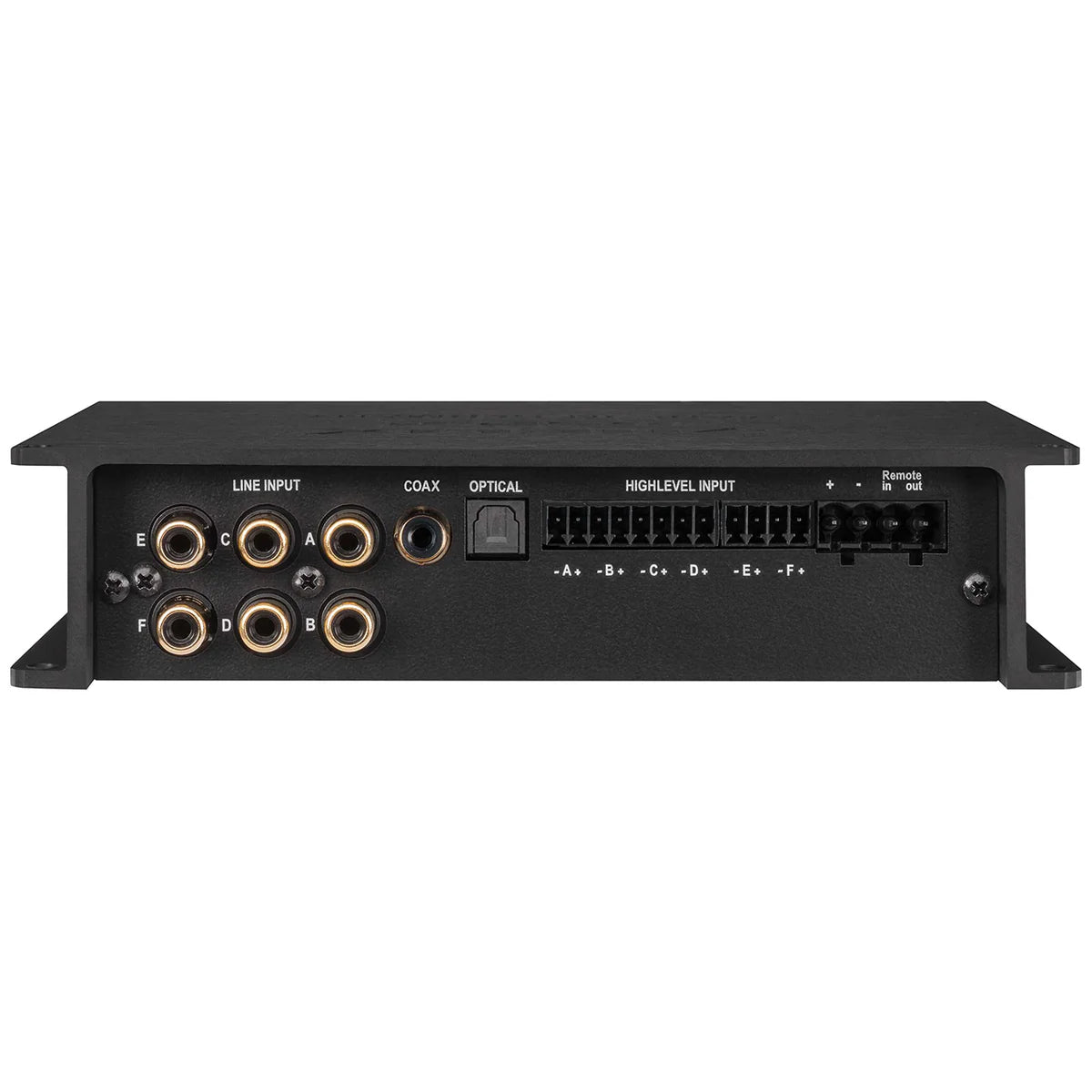

Inputs 6 x RCA / Cinch
6 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Coax SPDIF (12 - 192 kHz)
1 x Remote In
Input sensitivity RCA / Cinch 2 - 4 Volts
Highlevel 5 - 11 Volts

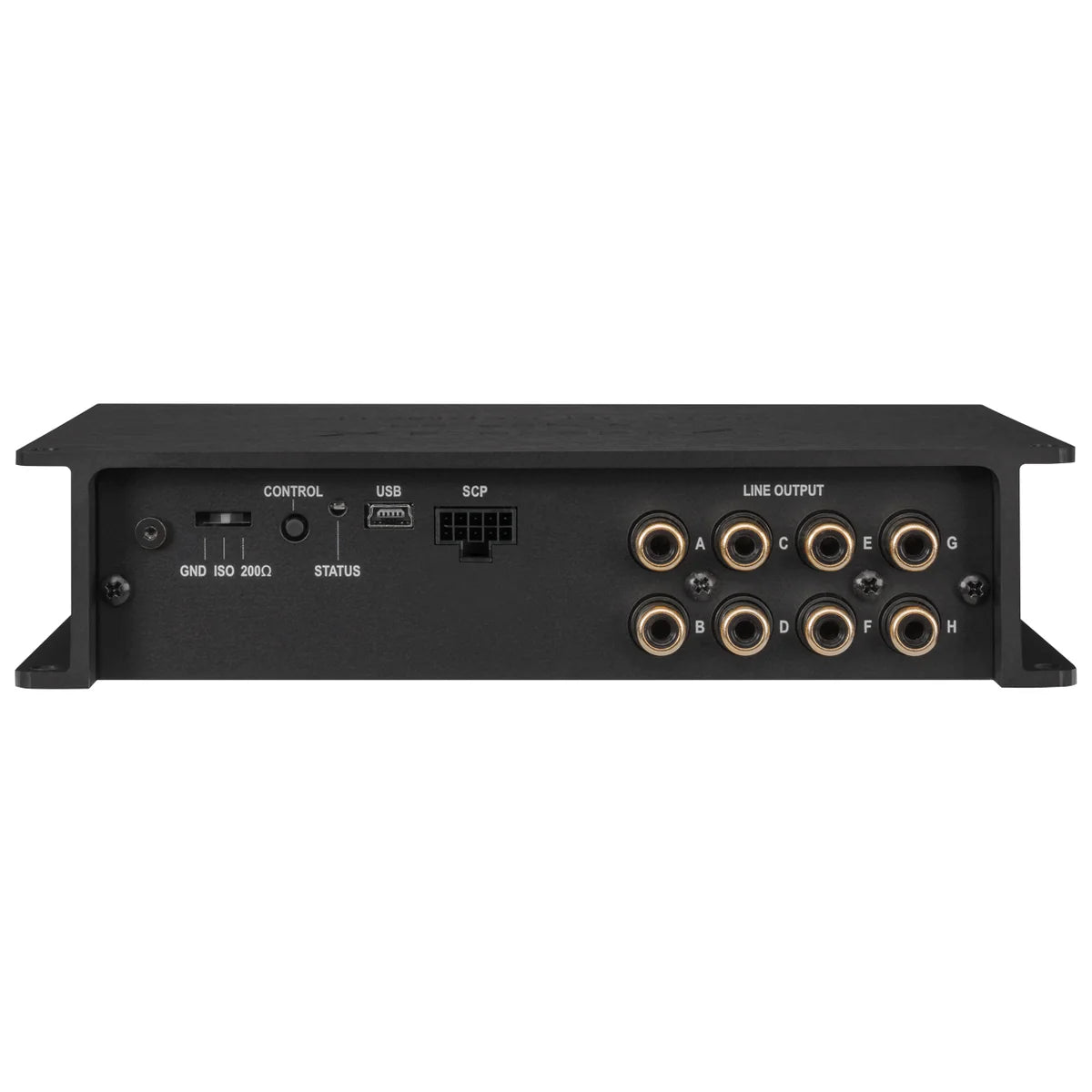

Outputs 8 x RCA / Cinch
1 x Remote Out
Output voltage 6 Volts
Frequency response 10 Hz - 44,000 Hz
DSP resolution 64 Bit
DSP power 295 MHz (1.2 billion MAC operations/second)
Sampling rate 96 kHz
DSP type Audio signal processor
Signal converters A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input 112 dB (A-weighted)
Signal-to-noise ratio analog input 107 dB (A-weighted)
Total harmonic distortion (THD+N) digital input < 0.0008 %
Total harmonic distortion (THD+N) analog input < 0.002 %
IM distortion (IMD) digital input < 0.003 %
IM distortion (IMD) analog input < 0.005 %
Crosstalk > 90 dB
Operating voltage 9.6 - 17 Volts (max. 5 sec. down to 6 Volts)
Power rating DC 12 V ⎓ 3 A max.
Current draw < 450 mA
Max. remote output current 500 mA
Additional features HEC slot, Ground lift switch, Smart Control Port, 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch
Dimensions (H x W x D) 40 x 177 x 120 mm /
1.58 x 6.97 x 4.72”
