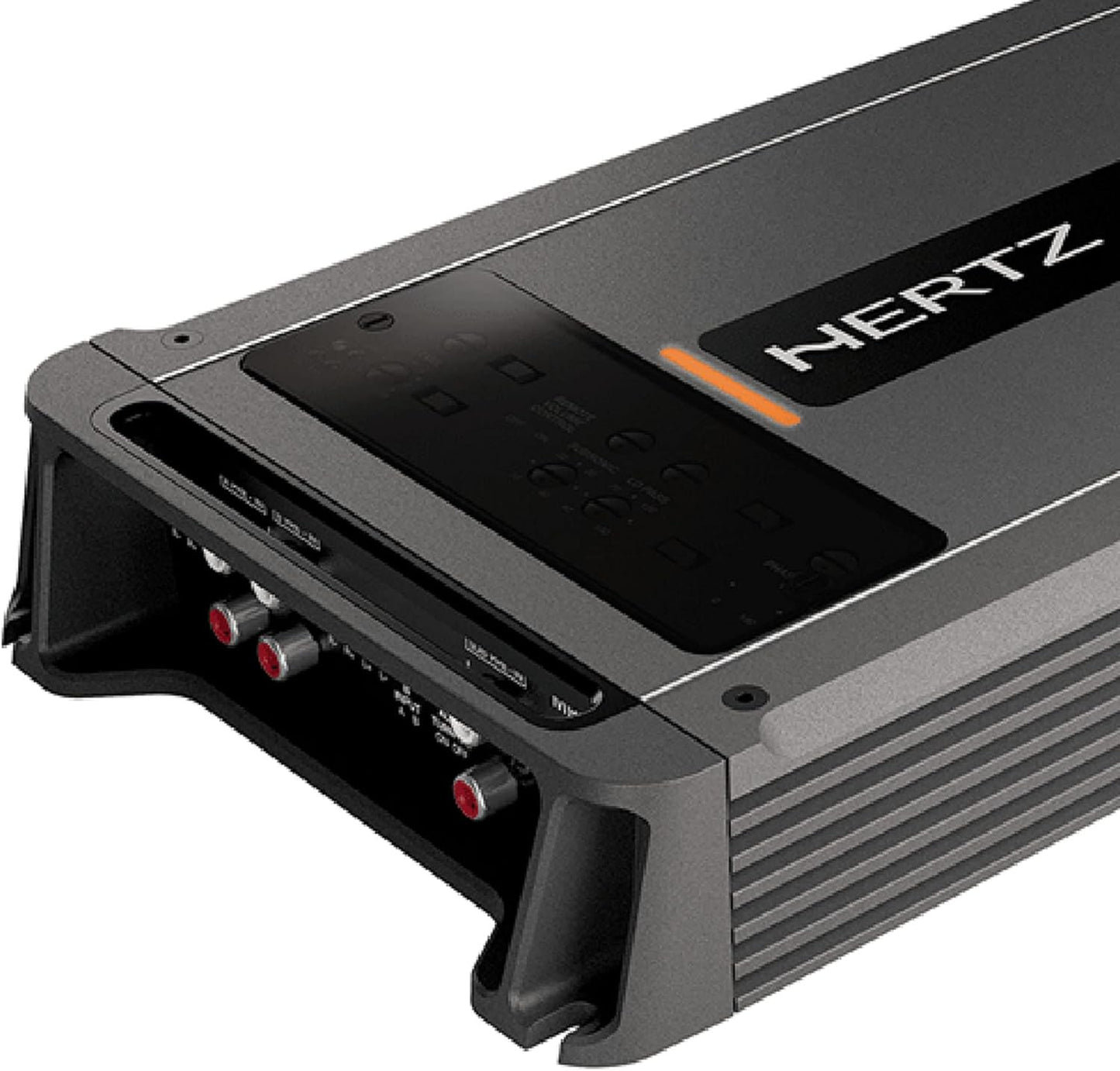

Hertz MLPower1 - Mono Amplifier

PLEASE CONTACT US TO PURCHASE

The Kind of Power that Makes a High-Performance Subwoofer Sound It’s Best!

Hertz Mille MLPOWER 1 Mono Subwoofer Amplifier
Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency.

The powerful mono Hertz audio car amplifier ML Power 1 (1000 W stable at 1 OHM) is perfect to drive the Mille subwoofers. The filters combination adopted for the Mille Power line is extremely flexible and ensures they can be used in any configuration. The active crossovers of ML Power 1 feature a 24 dB/Oct. adjustable slope Lo-Pass filter to adapt to every need. The control section, protected by a removable panel, can be accessed from the top for an effortless tuning.

Advanced D-Class Technology

Ensures pure listening pleasure while keeping a compact size with unmatched power efficiency.

LED Status Display

It monitors the amplifiers operating status in real time pointing out possible faults such as overheating, excessive loads on the outputs or short-circuits on cables or loudspeakers. This information allows the user to identify possible issues with the installation and to intervene before the amplifier goes into protection to prevent any damages.

HDP In & Art

The ML Power IN module features a Speaker In input (with balanced circuitry minimizing noise) for OEM head units and an RCA IN input for aftermarket sources. When the Speaker In is used, the ART function (Automatic Remote Turn On-Off) is enabled, managing the amplifier remote turn on to avoid unpleasant bumps.

Advanced Heatsink

The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency.

Features:

• Mono Subwoofer Amplifier
• 600 Watts RMS x 1 @ 4 Ohms (1,000 Watts RMS x 1 @ 2 Ohms)
• 1000 Watts RMS x 1 @ 1 Ohm
• CEA-2006 Compliant
• Class-D Amplifier Technology
• Variable Low-Pass Filter (50-500 Hz, 24 dB/Octave)
• Variable Subsonic Filter (18-40 Hz, 24 dB/Octave)
• Variable Phase Adjustment (0-180°)

Specifications:

• Channels: 1
• Power Supply Voltage: 11÷15 VDC
• Idling Current: 2A
• Idling Current When Off: 0.04 mA
• Consumption @ 1Ω, 14.4 VDC (Max Musical Power): 83.5 A
• Distortion – THD (100 Hz @ 4Ω): 0.08 %
• Bandwidth (-3dB): 18 ÷ 500 Hz
• S/N Ratio (A Weighted @ 1 V): 105 dB
• Damping Factor (100 Hz @ 4Ω): 100
• Pre-In Sensitivity: 0.2 ÷ 5 V RMS
• Pre-In Impedance: 15 kΩ
• Speaker-In Sensitivity: 0.8 ÷ 20 V RMS
• Speaker-In Impedance: 470 Ω
• Load Impedance 1CH: 4 ÷ 1Ω
• Remote In: 4 ÷ 15 VDC – 1 mA
• ART™: Automatic Remote Turn-On/Off with Speaker-In
• Fuse: 3 x 40 A
• Adjustable Crossovers Yes
• Inputs: Pre-In / Speaker-In
• Outputs: Pre-Out
• Filters: Lo-Pass 50 ÷ 500 Hz @ 24 dB/Oct
• Phase: (Continuous Adjustment) 0 ÷ 180°
• Subsonic: Hi-pass 18 ÷ 40 Hz @ 24 dB/Oct.
• Remote SUB Volume: (-50 ÷ 6) dB
• RMS Power (4 Ω, ≤ 1 % THD+N, 14.4 V): 600 W x 1Ch
• S/N Ratio (Ref. 1 W Output): 83.5 dBA
• Output Power (RMS) @ 14.4 VDC, THD 1%:
  • 1 Ch: 600 W x 1 (4Ω)
  • 1 Ch: 1000 W x 1 (2Ω)
  • 1 Ch: 1000 W x 1 (1Ω)
  • Total Power RMS: 1000 W
• Max Size: 170mm x 349mm x 46.70mm (6.69″ x 13.74″ x 1.84″)
• Weight: 3.09kg (6.81 lbs.)
• Packaging Type: Giftbox
